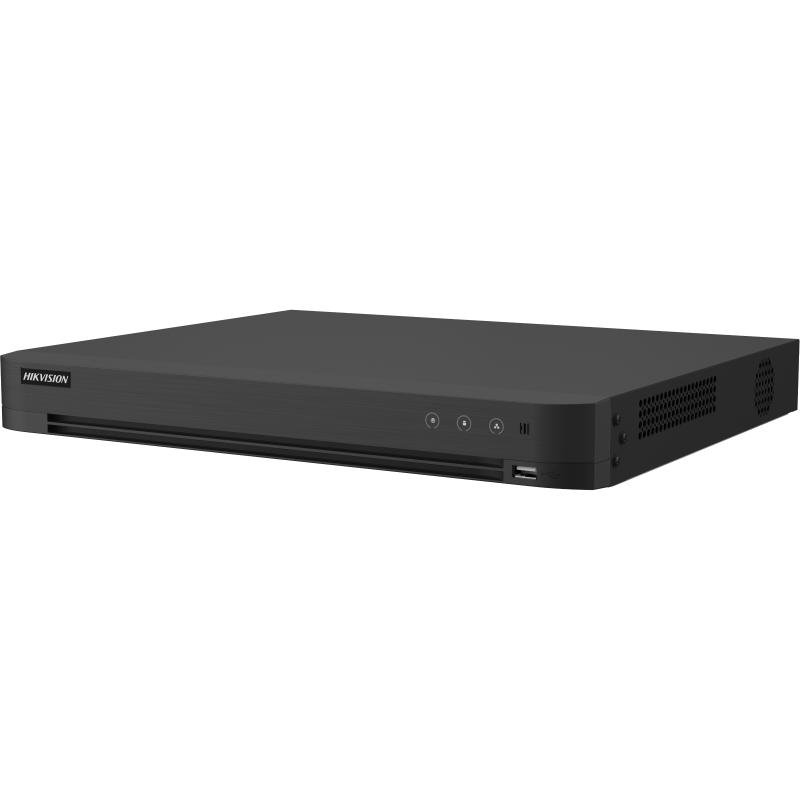

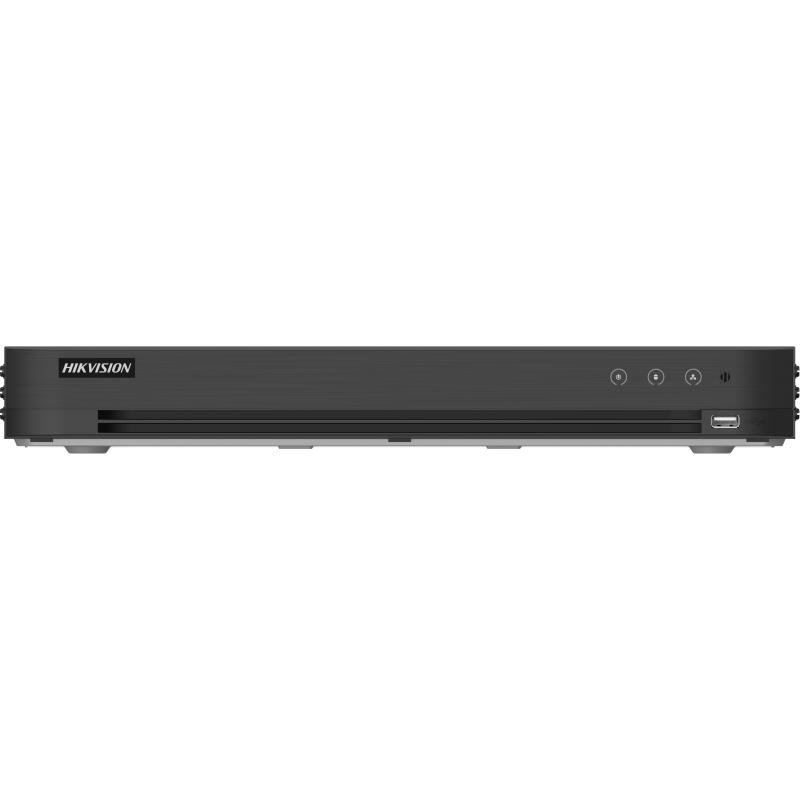

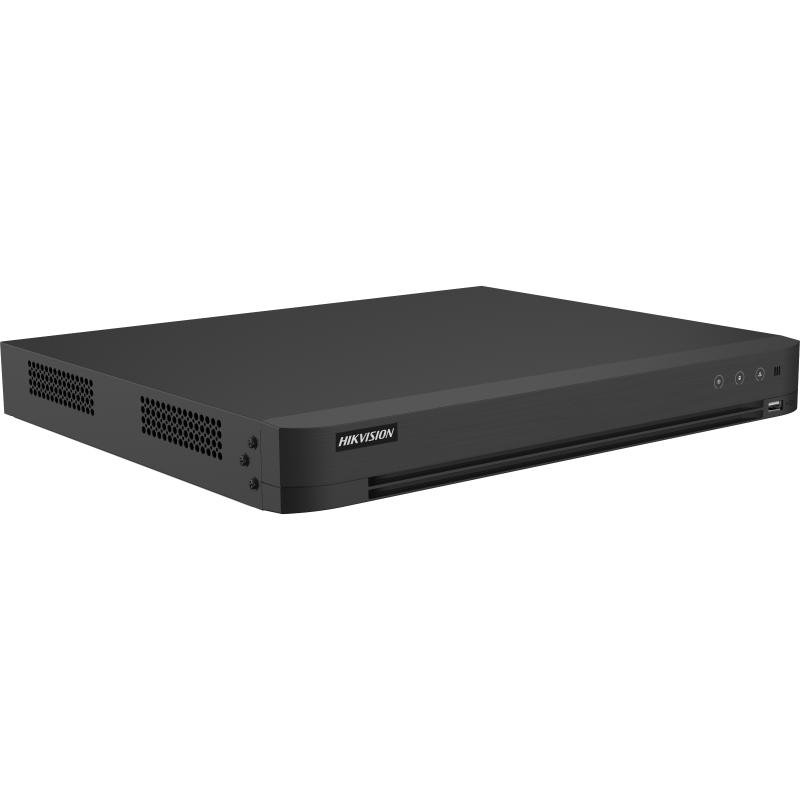

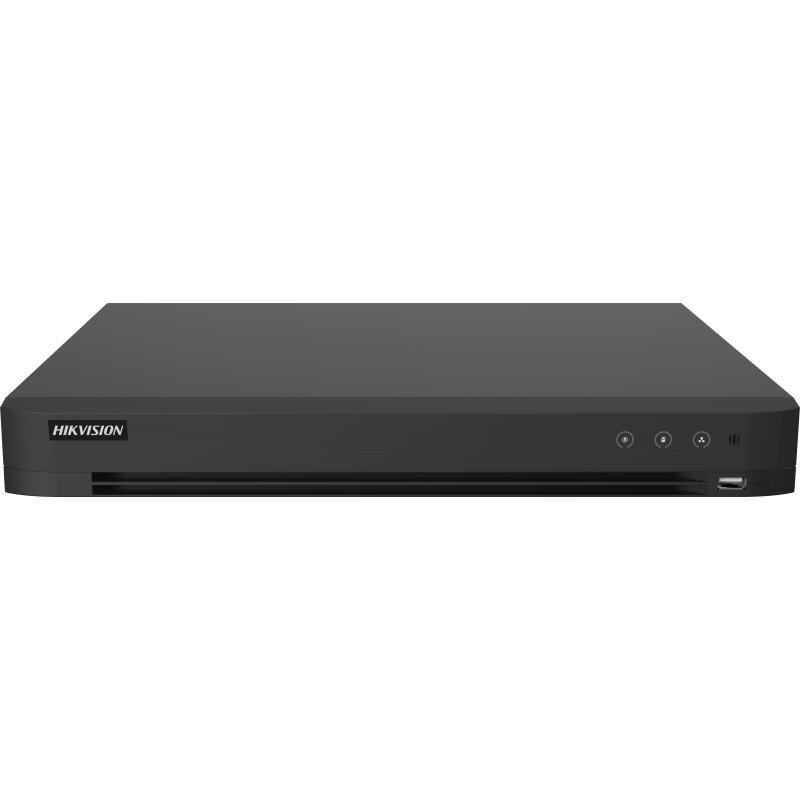

Digital Video Recorder Series iDS-7204HQHI-M1/XT
16-ch 1080p 1U H.265 AcuSense DVR
- 16 channels and 2 HDD 1U AcuSense DVR.
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm.
- Support 16-ch AcuSearch Technology.
- Efficient H.265 pro+ compression technology.
- Encoding ability up to 3K/5MP Lite@12fps.
- Up to 24 channels IP camera inputs, each channel up to 6MP.
- Up to 24*1080P@30fps decoding ability.
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Support All channels Motion Detection Technology.
- Support All channels HDTVI Two-Way Audio technology.
Model yang tersedia:
Spesifikasi
| Perimeter Protection | |
|---|---|
Human/Vehicle Analysis |
Up to 8-ch (advanced model) |
| Facial Detection | |
|---|---|
Facial Detection and Capture | Face picture detection, face picture search； |
| Target Recognition | |
|---|---|
Face Picture Comparison |
4-ch face picture comparison alarm (HD analog camera) |
Face Picture Library | Up to 16 face picture libraries; |
| Motion Detection 2.0 | |
|---|---|
Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; |
| Video and Audio | |
|---|---|
IP Video Input |
8-ch (up to 24-ch), each up to 6MP |

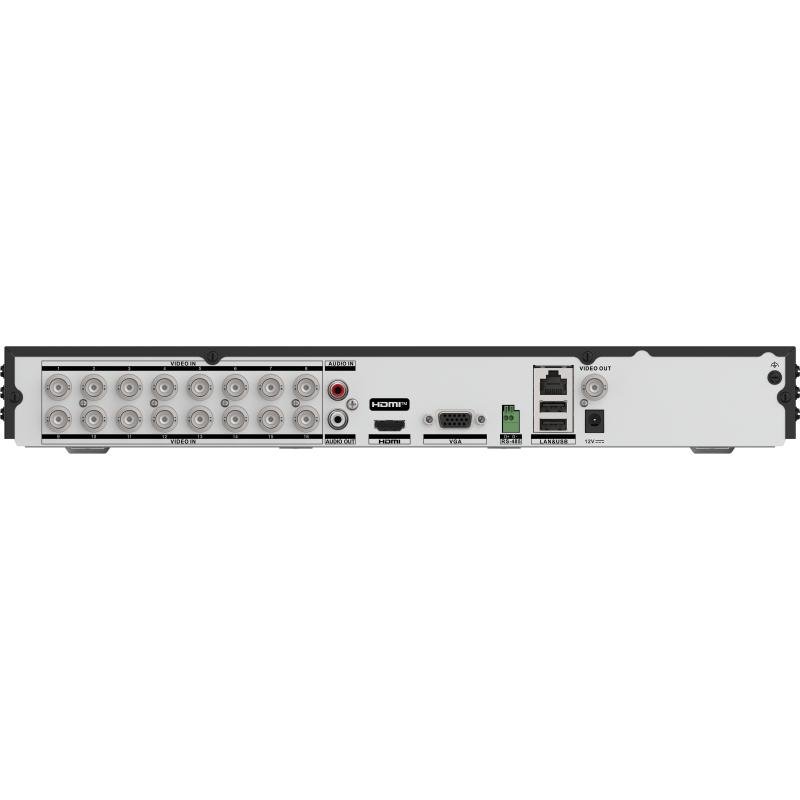

Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDTVI Input | 3K(2960 x 1665)@25/20fps, 3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30 fps, 720P@25/30fps |
AHD Input | 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
HDCVI Input |
3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps |
CVBS Input |
PAL/NTSC |
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Audio Input |
1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable |
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous playback |
16-ch |
| Recording | |
|---|---|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution | When 1080p Lite mode is not enabled: 2K/3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 2K/3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
Frame Rate | Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
Video Bitrate |
32 Kbps to 6 Mbps |
Dual-stream |
Support main stream or sub stream |
Stream Type |
Video, Video & Audio |
Audio Compression |
G.711u |
Audio Bitrate |
64 Kbps |
| Decoding | |
|---|---|
Decoding Capability |
up to 24-ch 1080P@30fps |
| Network | |
|---|---|
Remote Connection |
128 |
Total Bandwidth |
256 Mbps |
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
Network Interface |
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
|---|---|
SATA |
2 SATA interface, up to 12 TB capacity for each disk |
Serial Interface |
RS-485 (half-duplex) |
USB Interface | Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0 |
Alarm In/Out |
N/A (optional to support) |
| General | |
|---|---|
Power Supply |
12 VDC, 3.3 A |
Consumption |
≤40 W |
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity |
10% to 90% |
Dimension (W × D × H) |
384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch) |
≤ 2 kg (4.4 lb) | |
