Home > Products > Kamera CCTV >
*Gambar hanya untuk ilustrasi. Tampilan dan spesifikasi produk sebenarnya mungkin berbeda.

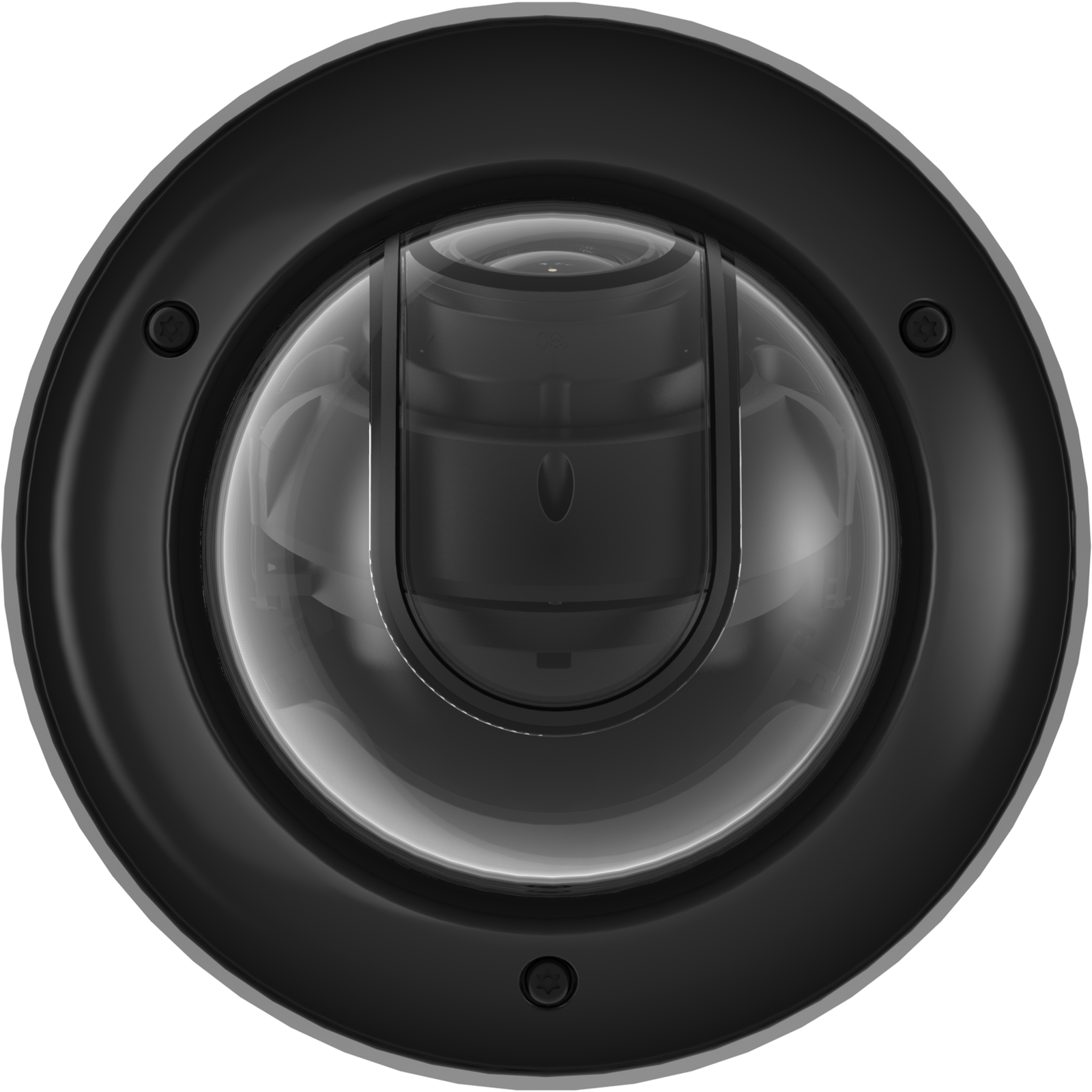

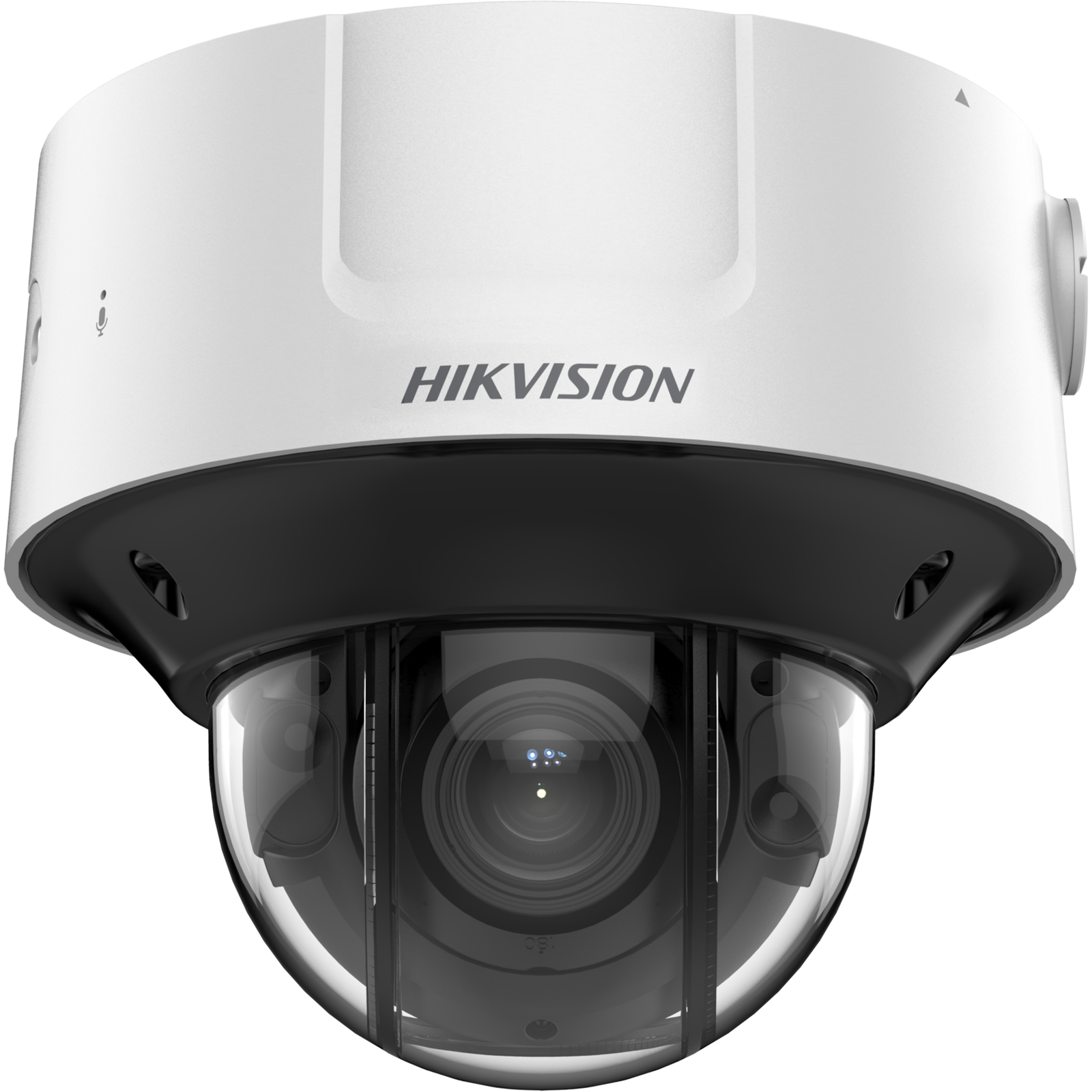

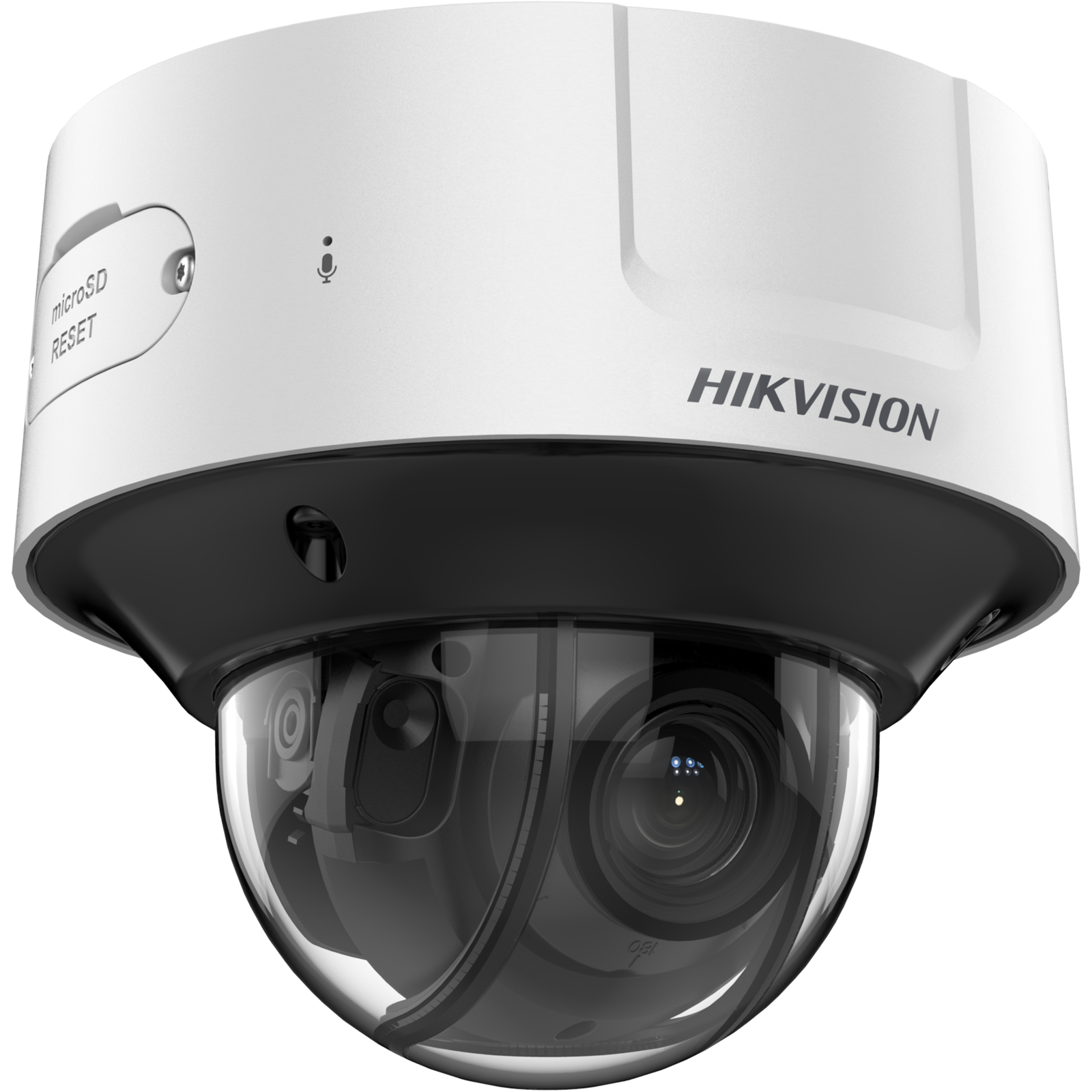

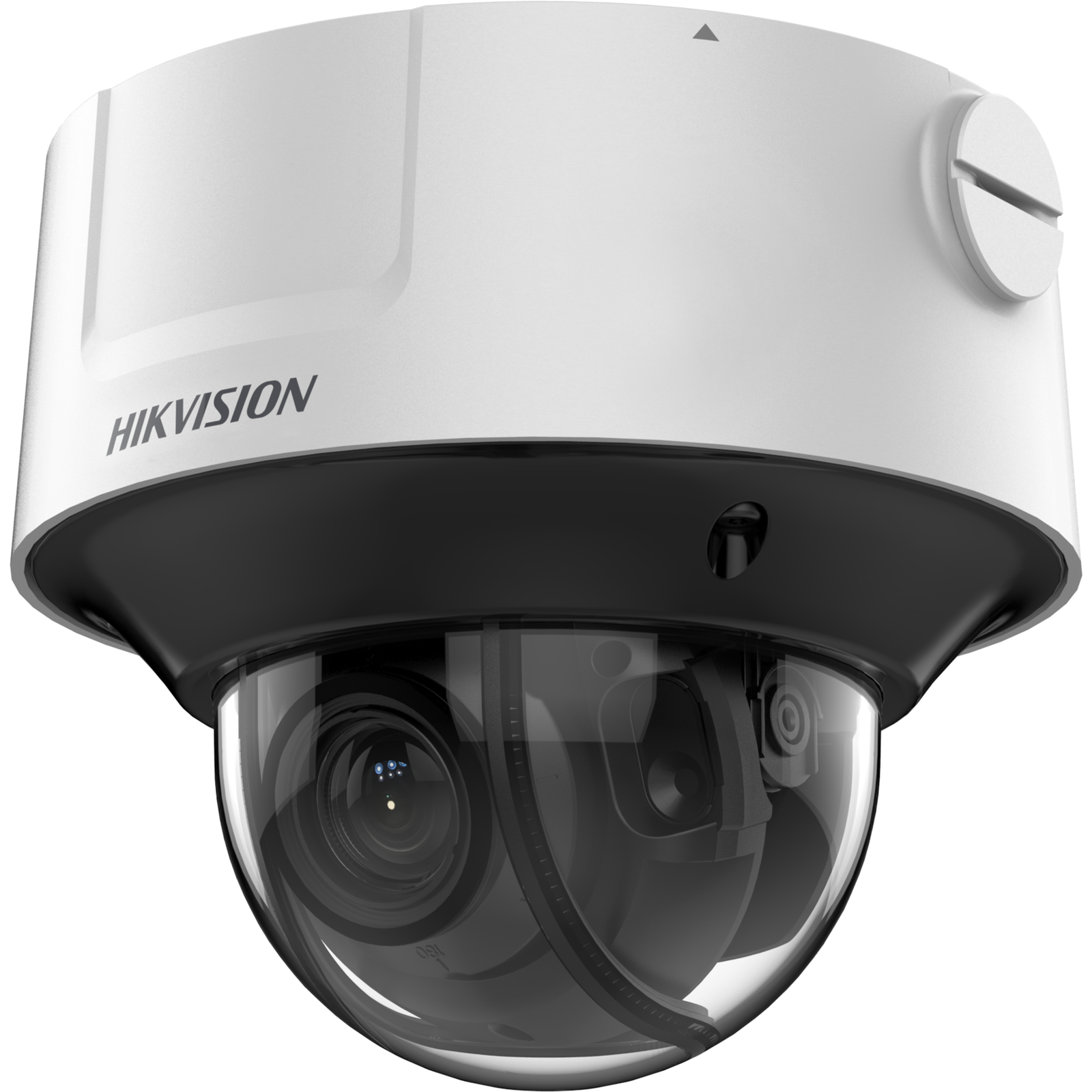

CCTV HIKVISION DS-2CD3D46G2T-IZMSU
Keamanan cerdas dengan detail gambar yang tajam
Hadir dengan teknologi pengawasan profesional, HIKVISION DS-2CD3D46G2T-IZMSU dirancang untuk memberikan perlindungan optimal bagi berbagai kebutuhan keamanan, baik di lingkungan bisnis maupun area komersial. Kamera CCTV ini mendukung pemantauan yang lebih detail dengan resolusi 4 MP, sehingga membantu menghasilkan gambar yang jelas untuk mengawasi aktivitas di sekitar area pemasangan.
Dilengkapi teknologi deteksi cerdas AcuSense untuk membantu membedakan manusia dan kendaraan dari objek lain, kamera ini mendukung pemantauan yang lebih efektif dan mengurangi alarm yang tidak relevan. Fitur lensa varifokal bermotor memungkinkan penyesuaian sudut pandang dan fokus sesuai kebutuhan pengawasan. Selain itu, teknologi inframerah membantu mendukung pemantauan dalam kondisi minim cahaya, sementara fitur audio dan alarm dapat meningkatkan kemampuan pengawasan sesuai konfigurasi perangkat.
Dengan desain yang dirancang untuk kebutuhan keamanan profesional, HIKVISION DS-2CD3D46G2T-IZMSU menjadi pilihan tepat untuk membantu menjaga keamanan gedung, kantor, area usaha, dan lingkungan lainnya secara lebih cerdas dan andal.
Model yang tersedia:
DS-2CD3D46G2T-IZMSU(2.8-12mm)(C)
Spesifikasi CCTV HIKVISION
Model DS-2CD3D46G2T-IZMSU
| Camera | |
|---|---|
Image Sensor |
1/1.8″ Progressive Scan CMOS |
Max. Resolution |
2688 × 1520 |
Min. Illumination |
Color: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR |
Shutter Time |
1/3 s to 1/100,000 s |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens | |
|---|---|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° |
Lens Mount |
Integrated |
Iris Type |
P-iris |
Aperture |
F1.2 |
Depth of Field |
2.8 to 12 mm: 1.5 m to ∞ |
| Pixel Density | |
|---|---|
DORI |
2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m |
| Illuminator | |
|---|---|
Supplement Light Range |
Up to 40 m |
Supplement Light Type |
IR |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
| Video | |
|---|---|
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+, |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile,Main Profile,High Profile |
H.265 Type |
Main Profile |
Bit Rate Control |
CBR,VBR |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
5 fixed regions for main stream and sub-stream |
Target Cropping |
Yes |
| Audio | |
|---|---|
Audio Type |
Mono sound |
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering |
Yes |
| Network | |
|---|---|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets |
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
Client |
iVMS-4200,Hik-Connect,Hik-Central |
Web Browser | Plug-in required live view: IE 10, IE 11, |
| Image | |
|---|---|
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Day/Night Switch |
Day,Night,Auto,Schedule |
Wide Dynamic Range (WDR) |
140 dB |
Image Enhancement |
BLC,HLC,3D DNR |
SNR |
≥ 52 dB |
Privacy Mask |
8 programmable polygon privacy masks |
| Interface | |
|---|---|
Video Output |
HDMI (HDMI 1.4, no adapter included): 1920 × 1080P@25/30/50/60 Hz |
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, |
Built-in Microphone |
Yes |
Alarm |
2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A) |
Reset Key |
Yes |
Power Output |
12 VDC, max. 100 mA |
| Event | |
|---|---|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event |
Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning |
| Deep Learning Function | |
|---|---|
Face Capture |
Yes |
Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| General | |
|---|---|
Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W,two-core terminal block,reverse polarity protection, |
Material |
Metal |
Dimension |
Ø162 mm × 141.8 mm (Ø6.4″ × 5.6″) |
Package Dimension |
251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″) |
Approx. 1420 g (3.1 lb.) | |
With Package Weight |
Approx. 2058 g (4.5 lb.) |
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter |
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval | |
|---|---|
EMC | FCC: 47 CFR Part 15, Subpart B, |
Safety | UL: UL 62368-1, |
Environment | CE-RoHS: 2011/65/EU, |
Protection |
IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Camera
| Camera | |
|---|---|
Image Sensor |
1/1.8″ Progressive Scan CMOS |
Max. Resolution |
2688 × 1520 |
Min. Illumination |
Color: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR |
Shutter Time |
1/3 s to 1/100,000 s |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
Lens
| Lens | |
|---|---|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° |
Lens Mount |
Integrated |
Iris Type |
P-iris |
Aperture |
F1.2 |
Depth of Field |
2.8 to 12 mm: 1.5 m to ∞ |
Pixel Density
| Pixel Density | |
|---|---|
DORI |
2.8 to 12 mm: D: 60 m to 149 m, O: 23 m to 59 m, R: 12 m to 29 m, I: 6 m to 14 m |
Illuminator
| Illuminator | |
|---|---|
Supplement Light Range |
Up to 40 m |
Supplement Light Type |
IR |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
Video
| Video | |
|---|---|
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
Fourth Stream | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main stream: H.265/H.264/H.264+/H.265+, |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile,Main Profile,High Profile |
H.265 Type |
Main Profile |
Bit Rate Control |
CBR,VBR |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
5 fixed regions for main stream and sub-stream |
Target Cropping |
Yes |
Audio
| Audio | |
|---|---|
Audio Type |
Mono sound |
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Environment Noise Filtering |
Yes |
Network
| Network | |
|---|---|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets |
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption |
Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
Client |
iVMS-4200,Hik-Connect,Hik-Central |
Web Browser | Plug-in required live view: IE 10, IE 11, |
| Image | |
|---|---|
Image Parameters Switch |
Yes |
Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Day/Night Switch |
Day,Night,Auto,Schedule |
Wide Dynamic Range (WDR) |
140 dB |
Image Enhancement |
BLC,HLC,3D DNR |
SNR |
≥ 52 dB |
Privacy Mask |
8 programmable polygon privacy masks |
Interface
| Interface | |
|---|---|
Video Output |
HDMI (HDMI 1.4, no adapter included): 1920 × 1080P@25/30/50/60 Hz |
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, |
Built-in Microphone |
Yes |
Alarm |
2 inputs, 2 outputs (max. 24 VDC, 1 A; 24 VAC, 1 A) |
Reset Key |
Yes |
Power Output |
12 VDC, max. 100 mA |
Event
| Event | |
|---|---|
Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
Smart Event |
Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
Linkage |
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning |
Deep Learning Function
| Deep Learning Function | |
|---|---|
Face Capture |
Yes |
Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
General
| General | |
|---|---|
Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W,two-core terminal block,reverse polarity protection, |
Material |
Metal |
Dimension |
Ø162 mm × 141.8 mm (Ø6.4″ × 5.6″) |
Package Dimension |
251 mm × 215 mm × 189 mm (9.9″ × 8.5″ × 7.4″) |
Approx. 1420 g (3.1 lb.) | |
With Package Weight |
Approx. 2058 g (4.5 lb.) |
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function |
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter |
Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Approval
| Approval | |
|---|---|
EMC | FCC: 47 CFR Part 15, Subpart B, |
Safety | UL: UL 62368-1, |
Environment | CE-RoHS: 2011/65/EU, |
Protection |
IP67: IEC 60529-2013;IK10: IEC 62262:2002 |
Hubungi kami sekarang untuk konsultasi teknis gratis & penawaran harga terbaik.
